126522

Articulated stand FISSO STRATO

SwissMade
M-28 - The large model with continuously adjustable pre-clamping for protection of the measuring instruments. All versions with microfine adjustment.

Designs:

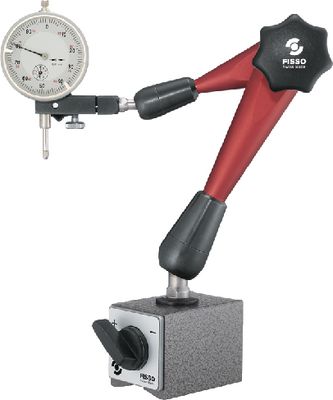

126522.0100...126522.0200: Powerful on/off magnet with V-base, can be switched on and off by turning the handle

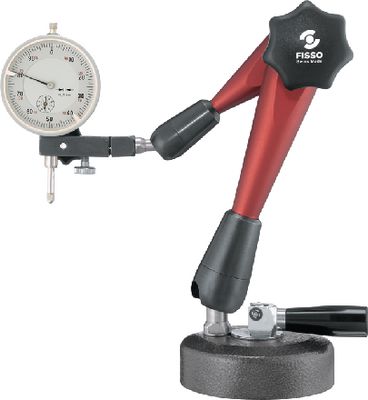

126522.0300: Vacuum base particularly suitable on hard-stone plates and all even and non-porous surfaces. Holds and releases by means of toggle

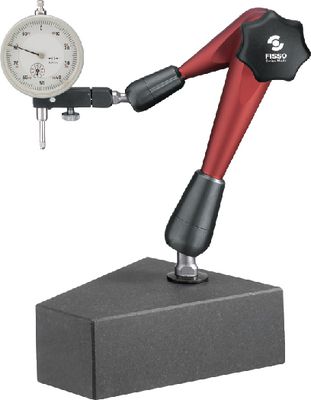

126522.0400: Granite sliding foot slides well on hard-stone plates, e.g. for checking parallelism. Made from black granite, face ground, underside hollow-ground; with dust grooves

Package contents:
Delivered in transport packaging, without dial gauge.

Appropriate accessories:
Dial gauges from 121450
Dial test indicators from 124210
Attached articulated stands 126570 /126580
Accessories 126590
Loading...
Found 4 items
Article Nr
Description
Radius of action [mm]
Height [mm]
Base [mm]
Adhesive strength [N]
Netto CHF
incl. delivery
Scales
Netto CHF
incl. delivery
Menge
126522.0100
Articulated stand FISSO STRATO Microfine adjustment
280 / 800 N / M-28 / M
280
390
60 x 50 x 55
~800
Article Details
126522.0200
Articulated stand FISSO STRATO Microfine adjustment
280 / 1000 N / M-28 / SM
280
390
75 x 50 x 55
~1000
Article Details
126522.0300
Articulated stand FISSO STRATO Microfine adjustment
280 / M-28 / V
280
365
Ø 88 x 27
-
Article Details
126522.0400
Articulated stand FISSO STRATO Microfine adjustment
280 / M-28 / G
280
385
150 x 120 x 50 x 50
-
Article Details
