F121853.0100a
F121853.1100a
F121853.0100a
F121853.1100a

121853

Dial gauge digital NERIOX MILLI TOL / ANALOG

NERIOX

Designs:

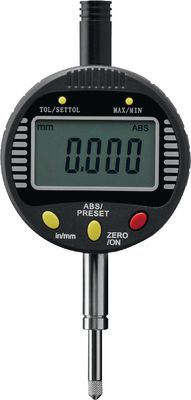

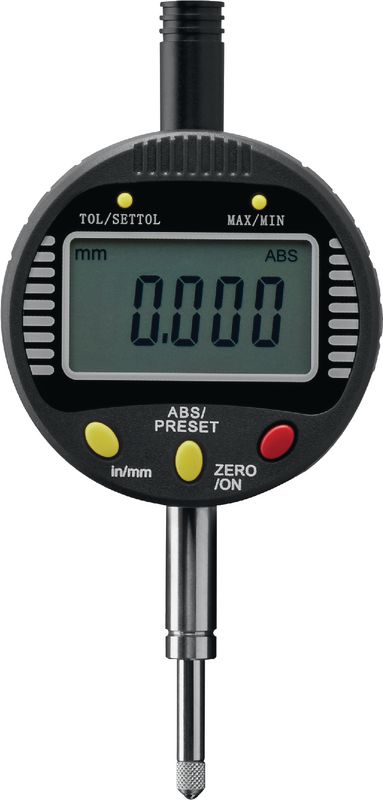

121853.0200: with tolerance display

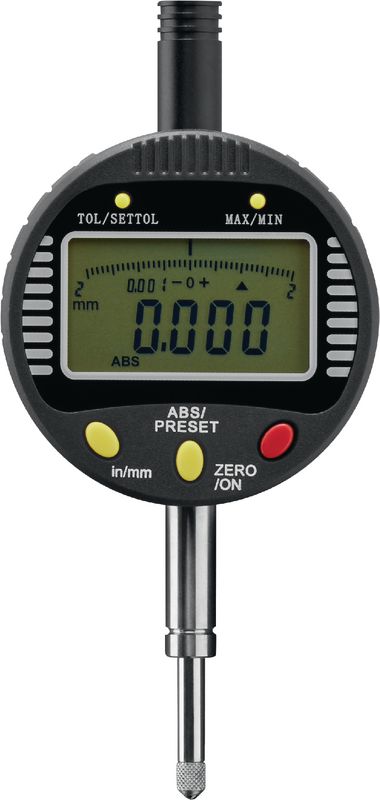

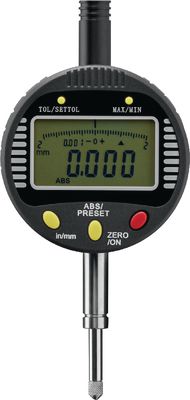

121853.1200: with tolerance/analog display

Features:
  • LCD display
  • Zero setting
  • Measuring mode REL / ABS
  • PRESET (preset value input)
  • TOL (tolerance input)
  • MAX / MIN function
  • Conversion mm / inch
  • Display digital / analog (depending on the type)

Package contents:
Delivered in case incl. declaration of conformity.

Appropriate Measuring Inserts:
124008 Measuring inserts M2.5 FUTURO
124010 Measuring inserts M2.5
710140 Measuring insert for comparator M 2.5 VOH
735820 Polymer dial gauge feeler TECHNIWATCH

Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery)
Downloads:
Instructions
Found 2 items
FILTER
Travel [mm] ▾
Travel [mm] ✕
Remove filter
Resolution [mm] ▾
Resolution [mm] ✕
Remove filter
Measuring pressure [N] ▾
Measuring pressure [N] ✕
Remove filter
Accuracy [µm] ▾
Accuracy [µm] ✕
Remove filter
More filters
Reset filter
Article Nr
Description
Travel [mm]
30
Resolution [mm]
0.001
Measuring pressure [N]
1.4
Accuracy [µm]
5
Type
MILLI TOL - MILLI TOL/ANALOG
Digit height [mm]
10
A [mm]
181
E [mm]
34.6
F [mm]
21
H [mm]
56.5
Version
with tolerance display - with tolerance/analog display
Scales
Net CHF
plus delivery
Quantity
121853.0200
Dial gauge digital NERIOX MILLI TOL with tolerance display
30 / 0.001 / 5 µm / 1.4 N
Travel [mm]
Resolution [mm]
Measuring pressure [N]
Accuracy [µm]
Travel [mm]
30
Resolution [mm]
0.001
Measuring pressure [N]
1.4
Accuracy [µm]
5
Scales, Net CHF plus delivery
Scales, Net CHF plus delivery
product.table_item.graduation, product.table_item.pricing
Article Details Measuring inserts Batteries
121853.1200
Dial gauge dig. NERIOX MILLI TOL/ANALOG with tolerance/analog display
30 / 0.001 / 5µm / 1.4 N
Travel [mm]
Resolution [mm]
Measuring pressure [N]
Accuracy [µm]
Travel [mm]
30
Resolution [mm]
0.001
Measuring pressure [N]
1.4
Accuracy [µm]
5
Scales, Net CHF plus delivery
Scales, Net CHF plus delivery
product.table_item.graduation, product.table_item.pricing
As long as stock lasts
Article Details Measuring inserts Batteries
