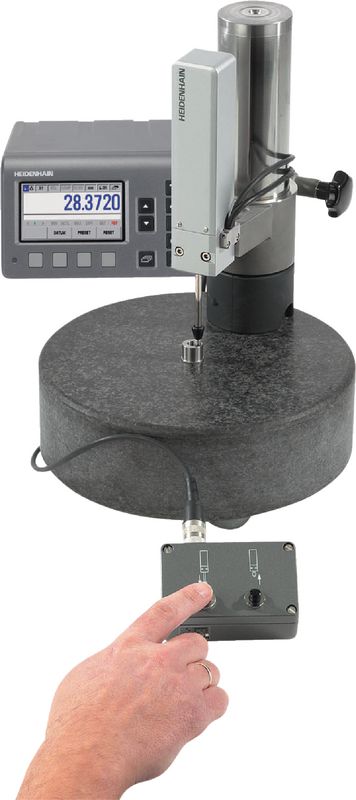

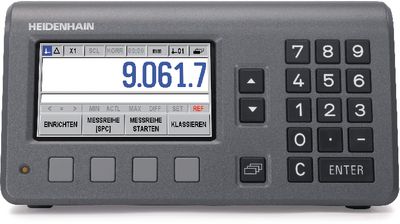

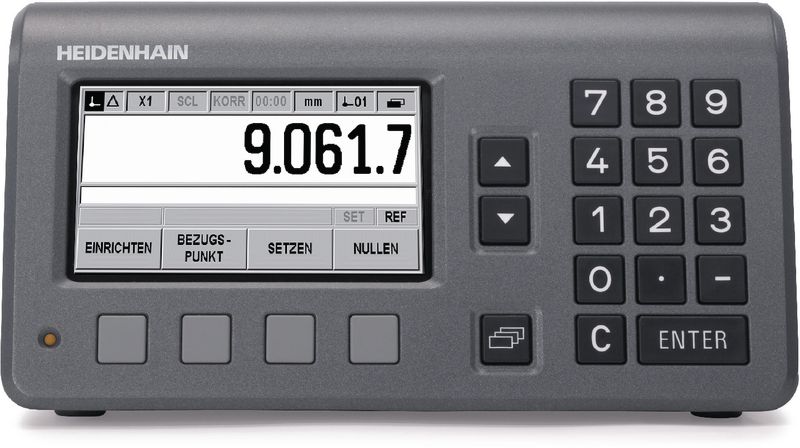

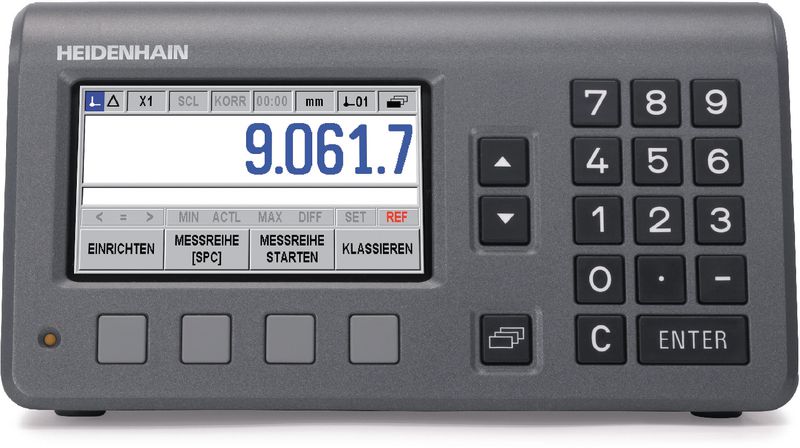

Display unit HEIDENHAIN ND, IP40

Digital display in desktop version. Sturdy aluminium die-cast housing. Front board protected to IP54.

Features:
Display [mm] 50 x 95
Dimensions WxDxH [mm] 211 x 212 x 112

Features:
  • 1 connection for measuring probe HEIDENHAIN
  • Protection class IP54 (front side only)
  • Setting of zero point
  • 2 reference values
  • Reference mark evaluation
  • mm / inch conversion
  • Digit value setting
  • Reversible count direction
  • Data interface V.24/RS-232C, USB

132760.0210 (additionally):
  • Colour display screen
  • Go/rework/no-go classification
  • Min / Max / Delta
  • Memory of up to 10000 measurements
  • Graph display (distribution/bar chart)
  • Connection of a second touch probe possible (optional)
  • Various gate inputs / gate ouputs available (automating)

Package contents:
Delivered in transport packaging.
Loading...
Found 2 items
Article Nr
Description
Type
Probe connections
Resolution [µm]
Protection class
Netto CHF
incl. delivery
Scales
Netto CHF
incl. delivery
Quantity
132760.0110
Display unit HEIDENHAIN 1x connection HEIDENHAIN incremental
ND280
ND280
1x HEIDENHAIN incremental
500...0.001
IP40
Article Details Accessory
Loading...
132760.0210
Display unit HEIDENHAIN 1x connection HEIDENHAIN incremental
ND287
ND287
1x (2x) HEIDENHAIN incremental
500...0.001
IP40
