F115145.0100b
F115145.0200a
W115145.0200a
W115145.0100a
F115145.0100b
F115145.0200a
W115145.0200a
W115145.0100a

115145

External micrometer digital SYLVAC S_Mike PRO Crimpen / Point IP67

SwissMade - 2-year guarantee
Non-rotating measuring spindle with quick spindle setting.

Designs:

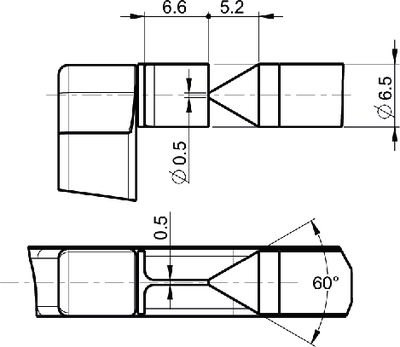

115145.0100: Anvil side knife shaped, spindle cone 60° x 0.5 mm

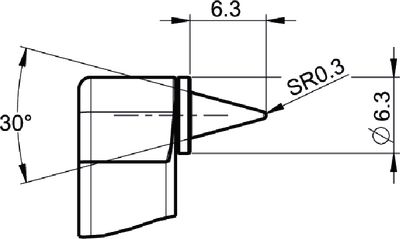

115145.0200: 2 point 30° / SR 0.3 mm

Features:
  • LCD display
  • Stand-by functions
  • Auto-On when motion detected and position memory
  • mm/inch conversion
  • Data output Bluetooth®

Package contents:
Delivered in case including ISO certificate.

Appropriate batteries:
1 pieces 155051.0545 - CR2032 / 3.0 V (included in scope of delivery)
Downloads:
Documentation
Found 2 items
FILTER
Range [mm] ▾
Range [mm] ✕
Remove filter
Resolution [mm] ▾
Resolution [mm] ✕
Remove filter
Accuracy [µm] ▾
Accuracy [µm] ✕
Remove filter
Measuring surfaces [mm] ▾
Measuring surfaces [mm] ✕
Remove filter
More filters
Reset filter
Article Nr
Description
Range [mm]
0...25
Resolution [mm]
0.001
Accuracy [µm]
3
Measuring surfaces [mm]
0.5 x 6.5 / 60° x Ø 0.5 - 2 x 30° / SR 0.3
Measuring spindle Ø [mm]
6.5
Spindle pitch [mm]
10
Digit height [mm]
8.5
Protection class
IP67
Data output
Bluetooth®
Measuring pressure [N]
5 / 10
Number of external micrometers
1
Version
Anvil side knife shaped, spindle cone 60... - 2 point 30° / SR 0.3 mm
Scales
Net CHF
plus delivery
Quantity
115145.0100

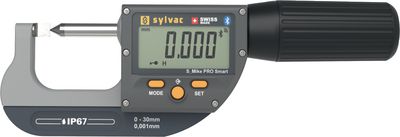

External micrometer SYLVAC S_Mike PRO Knife shaped, spindle cone 60°, BT®
0...25 / 0.001 / 0.5x6.5 / 60°/ IP67 /BT
Range [mm]
Resolution [mm]
Accuracy [µm]
Measuring surfaces [mm]
Range [mm]
0...25
Resolution [mm]
0.001
Accuracy [µm]
3
Measuring surfaces [mm]
0.5 x 6.5 / 60° x Ø 0.5
Scales, Net CHF plus delivery
Scales, Net CHF plus delivery
product.table_item.graduation, product.table_item.pricing
Article Details Accessory Batteries
115145.0200

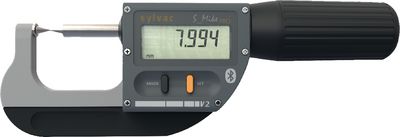

External micrometer SYLVAC S_Mike PRO Anvils Point 30°, Bluetooth®
0...25 / 0.001 / 2 x 30° / IP67 / BT
Range [mm]
Resolution [mm]
Accuracy [µm]
Measuring surfaces [mm]
Range [mm]
0...25
Resolution [mm]
0.001
Accuracy [µm]
3
Measuring surfaces [mm]
2 x 30° / SR 0.3
Scales, Net CHF plus delivery
Scales, Net CHF plus delivery
product.table_item.graduation, product.table_item.pricing
Article Details Accessory Batteries
