130012

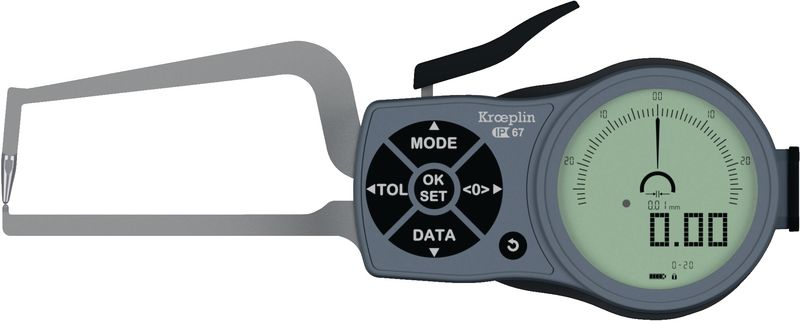

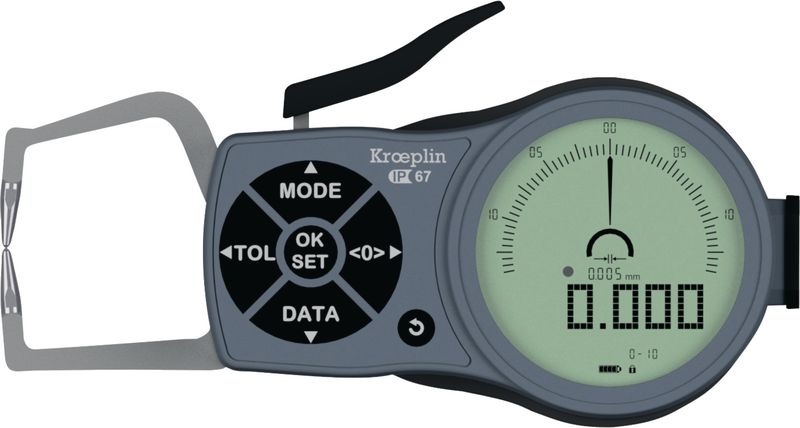

Quicktest gauge digital KROEPLIN External measurement IP67

For measuring external grooves, recesses, curved and flat material.

Features:
  • Combined LCD display (digital / analogue)
  • Red/green LED display for tolerance measurements
  • Absolute/relative measuring mode
  • mm/inch conversion

Note:

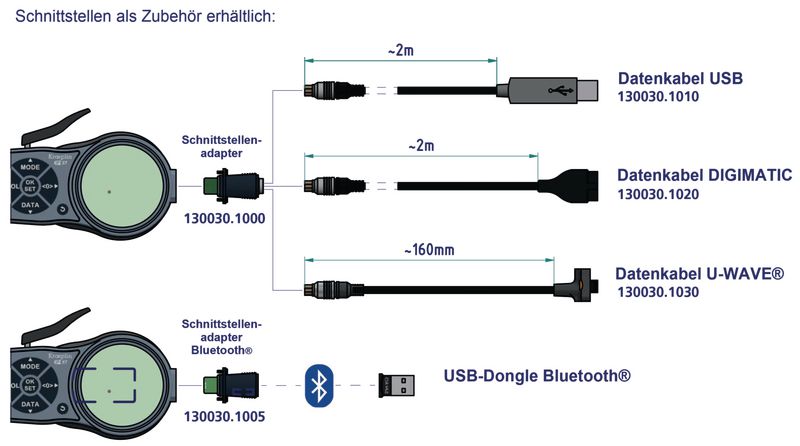

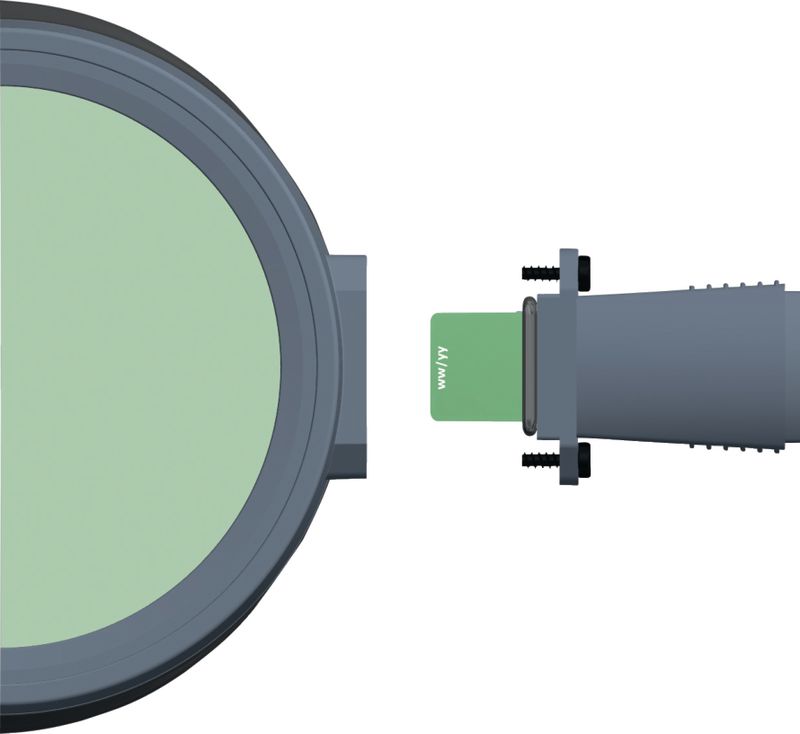

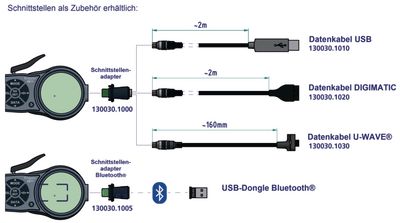

Data output optionally retrofittable via adapter and signal cable 130030 (USB/Digimatic/U-WAVE/BLUETOOTH).

Package contents:
Delivered in transport packaging incl. inspection report.

Appropriate batteries:
2 pieces 155050.0400 - LR03 / 1.5 V (Micro / AAA) (included in scope of delivery)
Found 5 items
FILTER
Range [mm] ▾
Range [mm] ✕
Remove filter
Capacity [mm] ▾
Capacity [mm] ✕
Remove filter
Resolution [mm] ▾
Resolution [mm] ✕
Remove filter
Accuracy [µm] ▾
Accuracy [µm] ✕
Remove filter
More filters
Reset filter
Article Nr
Description
Range [mm]
0...10 - 0...20
Capacity [mm]
35 - 85
Resolution [mm]
0.005 - 0.01
Accuracy [µm]
15 - 20
Type
K
Repeatability [µm]
5 - 10
Measuring pressure [N]
0.8...1.2 - 1.1...1.6
Meas. contact
K Ø 1.5 mm - T Ø 6 mm
Protection class
IP67
Data output
•
Weight [g]
240 - 270
Scales
Net CHF
plus delivery
Quantity
130012.1100
External quick probe digital KROEPLIN contact K Ø 1.5 mm, meas. depth 35 mm
0...10 / 0.005 / 35 / IP67
Range [mm]
Capacity [mm]
Resolution [mm]
Accuracy [µm]
Range [mm]
0...10
Capacity [mm]
35
Resolution [mm]
0.005
Accuracy [µm]
15
Scales, Net CHF plus delivery
Scales, Net CHF plus delivery
product.table_item.graduation, product.table_item.pricing
Downloads:
Documentation
Article Details Accessory Batteries
130012.1200
External quick probe digital KROEPLIN contact K Ø 1.5 mm, meas. depth 85 mm
0...20 / 0.01 / 85 / IP67
Range [mm]
Capacity [mm]
Resolution [mm]
Accuracy [µm]
Range [mm]
0...20
Capacity [mm]
85
Resolution [mm]
0.01
Accuracy [µm]
30
Scales, Net CHF plus delivery
Scales, Net CHF plus delivery
product.table_item.graduation, product.table_item.pricing
Downloads:
Documentation
Article Details Accessory Batteries
130012.1300
External quick probe digital KROEPLIN contact T Ø 6.0 mm, meas. depth 35 mm
0...10 / 0.005 / 35 / IP67
Range [mm]
Capacity [mm]
Resolution [mm]
Accuracy [µm]
Range [mm]
0...10
Capacity [mm]
35
Resolution [mm]
0.005
Accuracy [µm]
20
Scales, Net CHF plus delivery
Scales, Net CHF plus delivery
product.table_item.graduation, product.table_item.pricing
Downloads:
Documentation
Article Details Accessory Batteries
130012.2000
External quick probe digital KROEPLIN contact K Ø 1.5 mm, meas. depth 35 mm
0...10 / 0.005 / 35 / IP67
Range [mm]
Capacity [mm]
Resolution [mm]
Accuracy [µm]
Range [mm]
0...10
Capacity [mm]
35
Resolution [mm]
0.005
Accuracy [µm]
15
Scales, Net CHF plus delivery
Scales, Net CHF plus delivery
product.table_item.graduation, product.table_item.pricing
Downloads:
Documentation
Article Details Accessory Batteries
130012.2100
External quick probe digital KROEPLIN contact K Ø 1.5 mm, meas. depth 85 mm
0...20 / 0.01 / 85 / IP67
Range [mm]
Capacity [mm]
Resolution [mm]
Accuracy [µm]
Range [mm]
0...20
Capacity [mm]
85
Resolution [mm]
0.01
Accuracy [µm]
30
Scales, Net CHF plus delivery
Scales, Net CHF plus delivery
product.table_item.graduation, product.table_item.pricing
Downloads:
Documentation
Article Details Accessory Batteries
