127660

Run out testers BENZING

Benzing Concentricity testing instrument with base plate to DIN 876/1, a pair of tailstocks and dial gauge stand. The tip of the right tailstock can be pulled back using a lever and returns to its position by spring force. This permits easy insertion and removal of the test specimen.

Designs:
127660.0200...127660.0100: tailstocks with V-blocks mounted on the top
127660.0300:

Note:
The standard tips can be replaced by hollow tips, V-block inserts or carbide tips.

Package contents:
Base plate, pair of tailstocks and tips (60°), without dial gauge.

* for tailstocks/** for dial gauge holder
Found 3 items
FILTER
Tip width [mm] ▾
Tip width [mm] ✕
Remove filter
Tip height [mm] ▾
Tip height [mm] ✕
Remove filter
Holder Ø [mm] ▾
Holder Ø [mm] ✕
Remove filter
Length [mm] ▾
Length [mm] ✕
Remove filter
More filters
Reset filter
Article Nr
Description
Tip width [mm]
200 - 450
Tip height [mm]
50 - 100
Holder Ø [mm]
16 - 22
Length [mm]
350 - 700
Width [mm]
110 - 180
Height [mm]
260 - 320
T-slots [mm]
10 H7*/8 H7** - 12 H7*/8 H7**
Weight [kg]
~8 - ~35
for shafts Ø [mm]
— - 5...20
Version
tailstocks with V-blocks mounted on the ...
Scales
Net CHF
plus delivery
Quantity
127660.0100

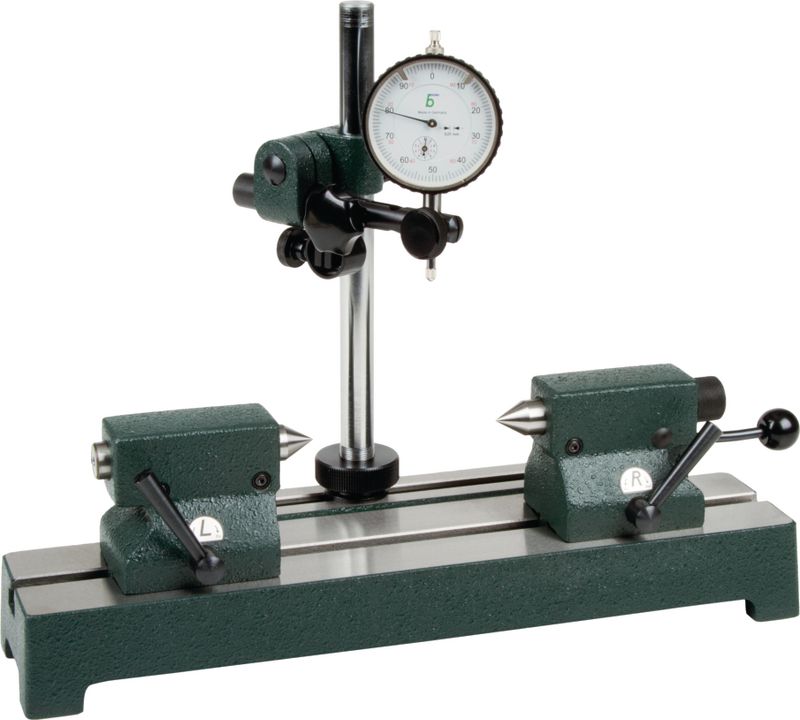

Run out tester BENZING tip width 200 mm, height 50 mm
50 / 200
Tip width [mm]
Tip height [mm]
Holder Ø [mm]
Length [mm]
Tip width [mm]
200
Tip height [mm]
50
Holder Ø [mm]
16
Length [mm]
350
Scales, Net CHF plus delivery
Scales, Net CHF plus delivery
product.table_item.graduation, product.table_item.pricing
Article Details Accessory Spare parts
127660.0200

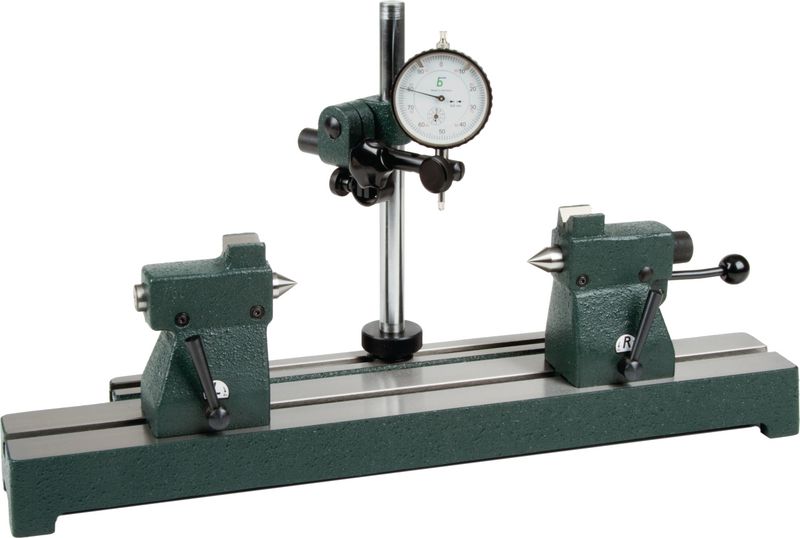

Run out tester BENZING tip width 350 mm, height 75 mm
75 / 350
Tip width [mm]
Tip height [mm]
Holder Ø [mm]
Length [mm]
Tip width [mm]
350
Tip height [mm]
75
Holder Ø [mm]
16
Length [mm]
500
Scales, Net CHF plus delivery
Scales, Net CHF plus delivery
product.table_item.graduation, product.table_item.pricing
Article Details Accessory Spare parts
127660.0300

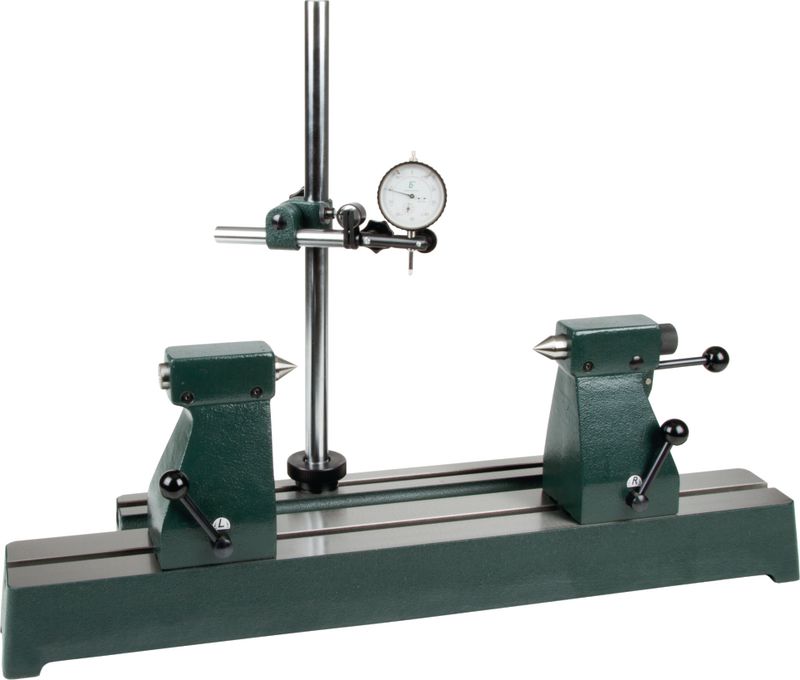

Run out tester BENZING tip width 450 mm, height 100 mm
100 / 450
Tip width [mm]
Tip height [mm]
Holder Ø [mm]
Length [mm]
Tip width [mm]
450
Tip height [mm]
100
Holder Ø [mm]
22
Length [mm]
700
Scales, Net CHF plus delivery
Scales, Net CHF plus delivery
product.table_item.graduation, product.table_item.pricing
Article Details Accessory
